Puzzolana wheel-mounted mobile plant comes with many benefits like reduced erection time and reduced civil works on the customer’s side. We can deliver the plant within 3-4 weeks and it can be commissioned by the customer in less than 7 to 10 days, depending on the condition of the site

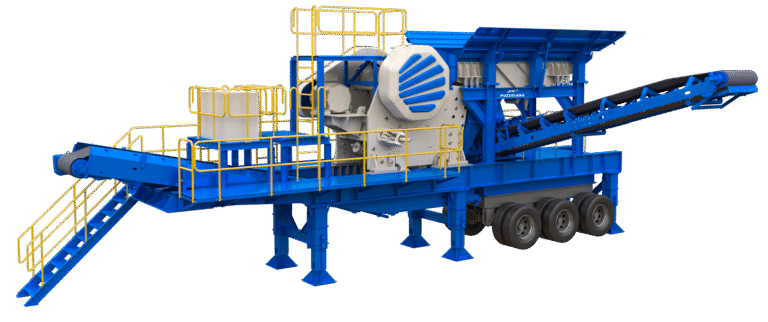

Speed Bharath Primary – PSBJ serves the purpose of primary crushing ROM feed material for tough Quarrying, Mining, and demolition applications. Speed Baharth is a semi-mobile primary wheel plant for quick movement and can be erected /positioned by hydraulic jacks. Renowned for its remarkable durability, reliability in continuous operation, and affordable maintenance. The axle loads are 10-12 Ton per axle is within the permissible transport load limits.
Capacity Chart
Model No. Transport Dimensions (LxWxH) (mm) Feeder Jaw Crusher
Model Size (LxW)(mm) Bulk Density (T/Cu.m) Power Input (kW) Model Feed Opening (mm) Max. Feed Size (mm) Drive Motor (kW) Capacity (TPH)
PSBJ4432 13395x2929x4914 PGF 1142 4200×1100 1.6-1.8 2X4.3 PJC-4432 1115×815 650 110 220
PSBJ11076 12351x2929x4914 PGF 1142 4200×1100 1.6-1.8 2X4.3 PJC-11076 1100×760 625 132 250
Note: The capacity figures and specifications are subjected to change with latest versions.
Features
Modular Design.
Quick setup time.
Ease of transport.
Minimum Civil work.

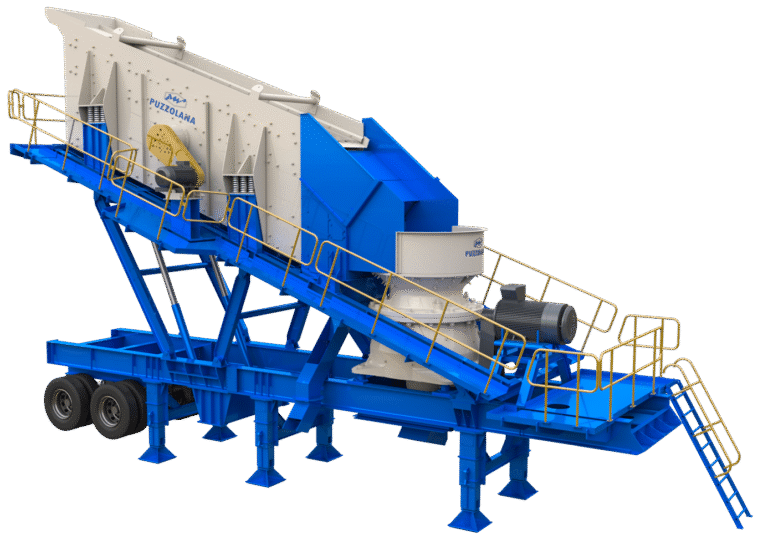

Puzzolana Speed Bharath Secondary Crushing – PSBC is extremely well-suited for a wide range of secondary and tertiary applications. Speed Baharth is a semi-mobile secondary wheel plant for quick movement and can be erected/positioned by hydraulic jacks and lifting of vibrating screens using Hydraulic cylinders. These crushers have been specially designed to provide excellent crushing capacity and generate final products that are perfect for concrete, construction & mineral projects. Its modular wheel-mounted design of 200/250 TPH capacity enables quick turnaround time as installation and dismantling time is faster.
Capacity Chart
Model No. Transport Dimensions (LxWxH) (mm) VIBRATING SCREEN CONE CRUSHER
Model No. of Decks Screen Size (mm) Motor Power (kW) Model Mantle Dia (mm) Feed Opening (mm) Power (kW) Capacity
PSBC1020 12600x2900x4850 PMVS 1860 – 4D 4 1800×6000 22 PCC 22100 1000 220 160 220
PSBC1125 12600x2900x4850 PMVS 1860 – 4D 4 1800×6000 22 PCC 26110 1100 260 200 250
Note: The capacity figures and specifications are subjected to change with latest versions.
Features
Modular Design.
Quick setup time.
Ease of transport.
Minimum Civil work.
Axle loads within the permissible limit.

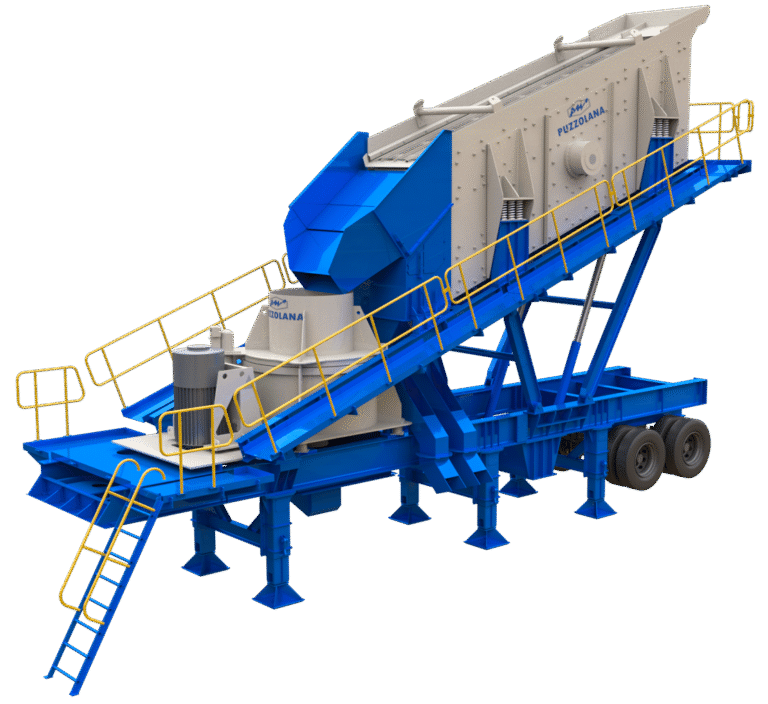

Puzzolana Speed Bharath Tertiary – PSBV is a highly efficient crusher that is specifically engineered to produce high-quality sands and cubically shaped aggregates. Designed in Rock on Rock & Rock on metal configurations excels in delivering the desired output while minimizing operational costs per tonne. With its semi-mobile and modular design, it can be easily transported from one site to another and be quickly commissioned with minimal foundation requirements.
Capacity Chart
Model No. Transport Dimensions (LxWxH) (mm) VIBRATING SCREEN VSI CRUSHER
Model No.of Decks Screen Size (mm) Motor Power (kW) Model Feed Size (mm) Table Size (mm) Motor Power (kW) Capacity (TPH)
PSBV750MDR 12600x2900x4850 PMVS 1860 4D 4 1800×6000 22 PMVSI 750MDR 35 775 185 – 220 185 – 220
PSBV800MDR 12600x2900x4850 PMVS 1860 4D 4 1800×6000 22 PMVSI 800MDR 40 840 250-315 200-250
Note: The capacity figures and specifications are subjected to change with latest versions.
Features
Modular Design.
Quick setup time.
Ease of transport.
Minimum Civil work.
Axle loads within the permissible limit.
